Self-Hosting Twenty CRM on diligentservices.io

A detailed guide on deploying the Twenty CRM with Docker Engine, Nginx, and Tailscale on ARM-based Ubuntu 24.04.

Overview

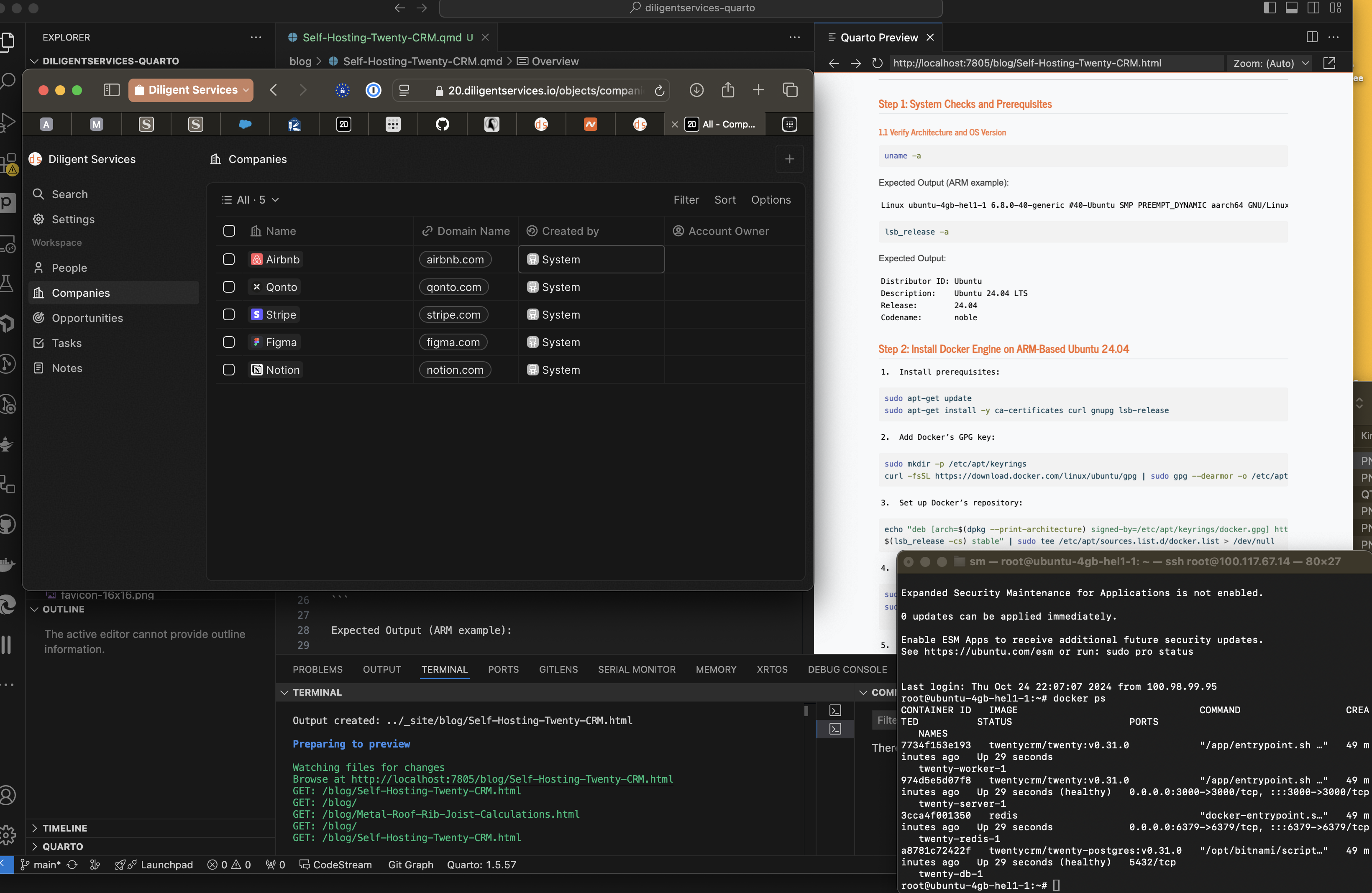

images/Twenty-Hero.png

This guide outlines how we deployed the Twenty CRM on our ARM-based Ubuntu 24.04 server. While Twenty offers great features, their $9 per user per month model can add up, and self-hosting saves us from subscription creep.

Although the process was fairly smooth, we had to install docker a bit differently and you’ll note the subtly different docker compose instead of docker-compose from the official Twenty.com self-hosting documentation. After a few wrong turns with docker, we realized we needed to use docker-compose-plugin instead of docker-compose which ships with Docker Desktop it seems likely that everything might “JustWorksTM”.

We’re managing the server over SSH via Tailscale—see our Docs for more on that setup.

---

Step 1: System Checks and Prerequisites

1.1 Verify Architecture and OS Version

uname -a

Expected Output (ARM example):

Linux ubuntu-4gb-hel1-1 6.8.0-40-generic #40-Ubuntu SMP PREEMPT_DYNAMIC aarch64 GNU/Linux

lsb_release -a

Expected Output:

Distributor ID: Ubuntu
Description:    Ubuntu 24.04 LTS
Release:        24.04
Codename:       noble

Step 2: Install Docker Engine on ARM-Based Ubuntu 24.04

1.  Install prerequisites:

sudo apt-get update
sudo apt-get install -y ca-certificates curl gnupg lsb-release

2.  Add Docker’s GPG key:

sudo mkdir -p /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg

3.  Set up Docker’s repository:

echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu \
$(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

4.  Install Docker and Docker Compose:

sudo apt-get update
sudo apt-get install -y docker-ce docker-ce-cli containerd.io \
    docker-buildx-plugin docker-compose-plugin

5.  Verify Docker installation:

sudo docker run hello-world

Step 3: Deploy Twenty CRM with Docker Compose

1.  Create and navigate to the working directory:

mkdir -p /opt/twenty && cd /opt/twenty

2.  Download Docker Compose files:

curl -O https://raw.githubusercontent.com/twentyhq/twenty/main/packages/twenty-docker/docker-compose.yml
curl -o .env https://raw.githubusercontent.com/twentyhq/twenty/main/packages/twenty-docker/.env.example

3.  Generate secure tokens:

openssl rand -base64 32

Repeat this command to generate four random strings for the following:

Use the generated values to update .env:

# /opt/twenty/.env
...
ACCESS_TOKEN_SECRET=first_random_string
LOGIN_TOKEN_SECRET=second_random_string
REFRESH_TOKEN_SECRET=third_random_string
FILE_TOKEN_SECRET=fourth_random_string
POSTGRES_ADMIN_PASSWORD=my_strong_password
SERVER_URL=https://20.diligentservices.io

4.  Start the containers:

docker compose up -d

5.  Check if containers are running:

docker ps

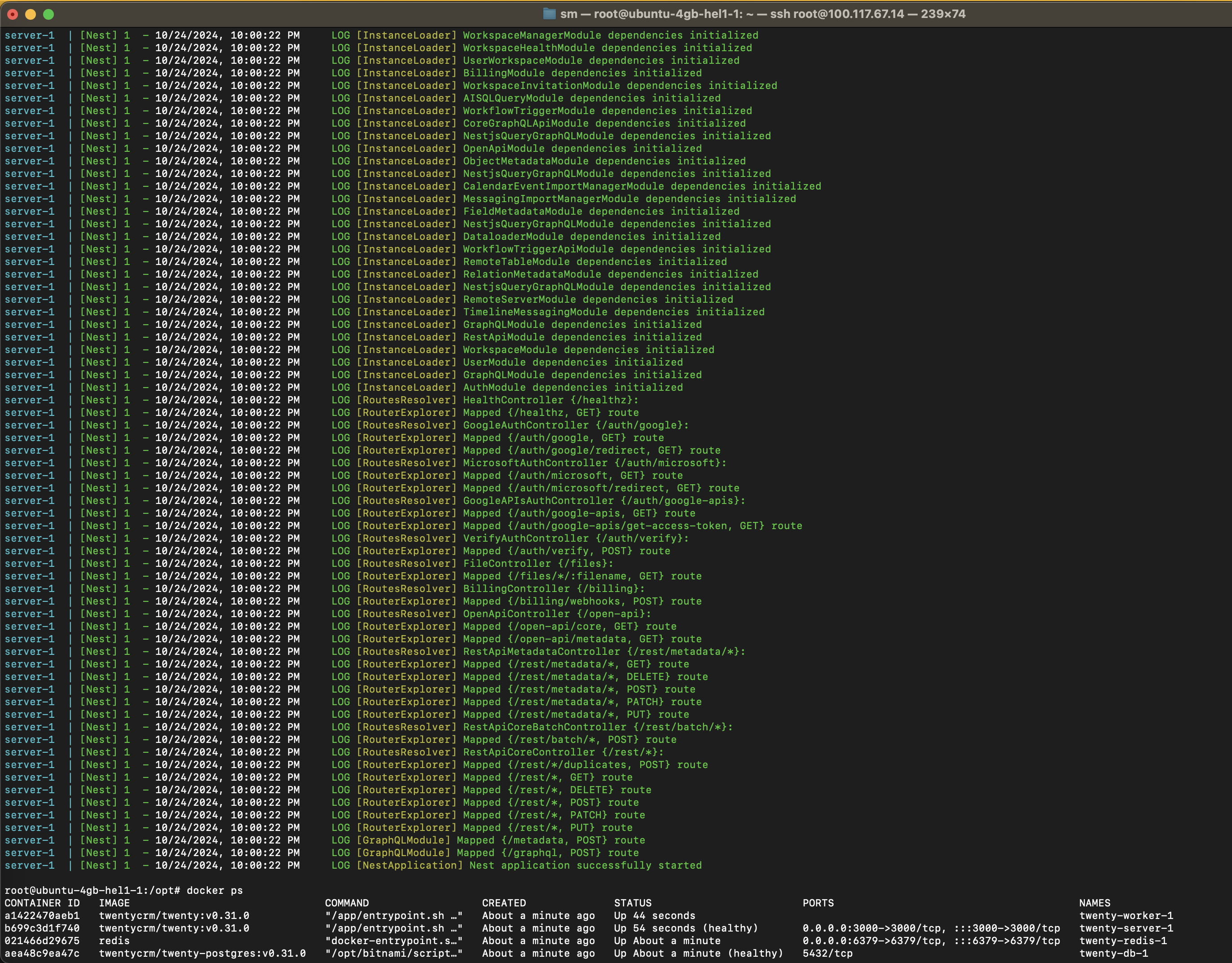

images/Twenty-Docker-PS.png

Step 4: Configure Nginx as a Reverse Proxy

1.  Create the Nginx config:

vim /etc/nginx/sites-available/20.diligentservices.io

2.  Add the following content:

server {
    listen 80;
    server_name 20.diligentservices.io;

    location / {
        proxy_pass http://localhost:3000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
    }

    error_log /var/log/nginx/20.diligentservices.io.error.log;
    access_log /var/log/nginx/20.diligentservices.io.access.log;
}

3.  Enable the configuration:

ln -s /etc/nginx/sites-available/20.diligentservices.io /etc/nginx/sites-enabled/

4.  Test and reload Nginx:

nginx -t
systemctl reload nginx

Step 5: Troubleshooting: White Screen and Login Issues

Despite the correct Nginx setup, I initially encountered a white screen. Running the following commands resolved the issue by installing many hidden dependencies:

1.  Run Yarn and reset the database:

docker exec -it twenty-server-1 yarn
docker exec -it twenty-server-1 npx nx database:reset

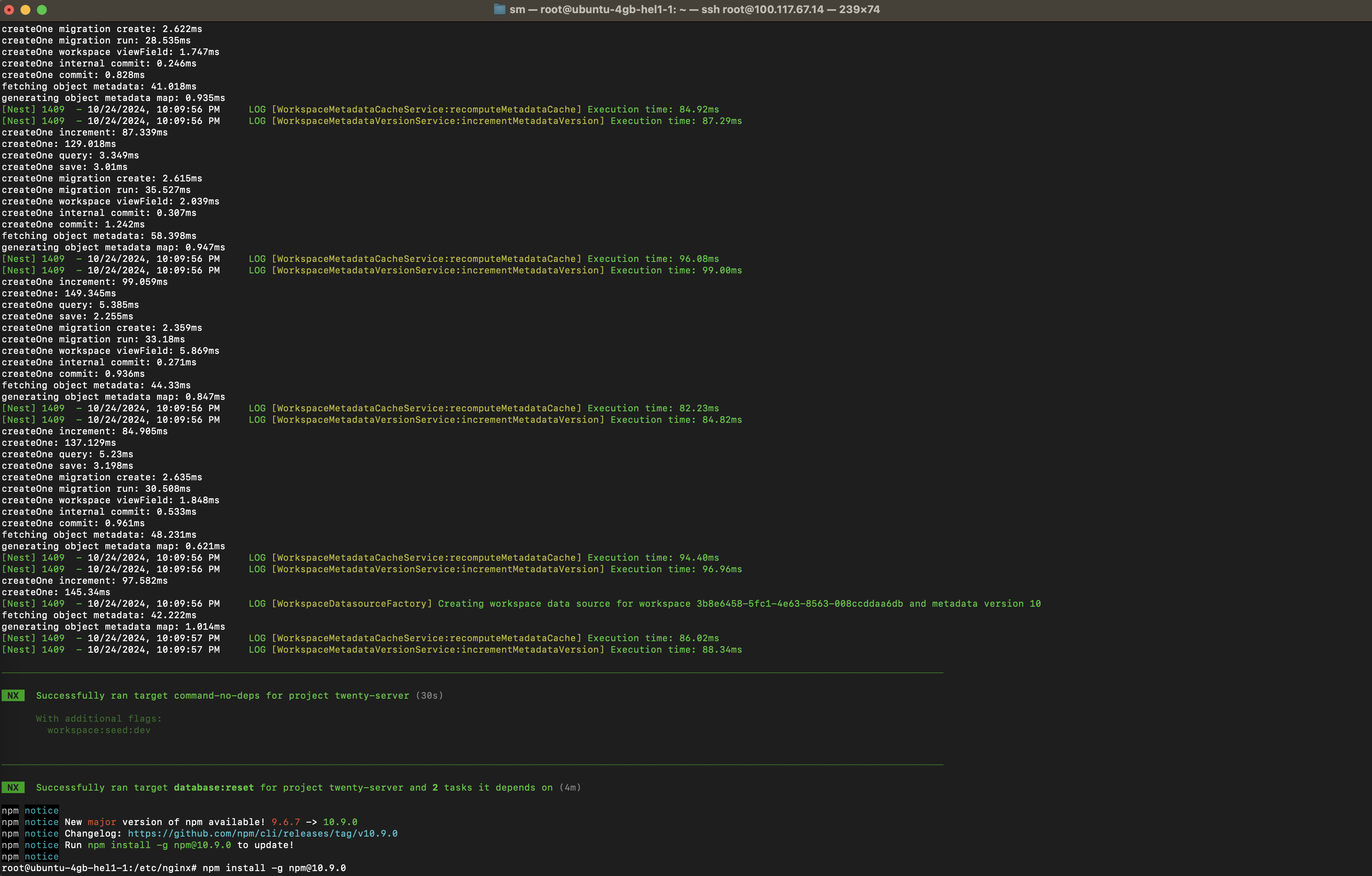

images/Twenty-Docker-Exec.png

2.  Restart the containers:

docker compose down
docker compose up -d

If You Experience Reverse Proxy Issues

1.  Verify SERVER_URL:

Ensure the SERVER_URL in your .env matches the external URL and uses https if SSL is enabled.

Step 6: Secure the Setup with SSL and Tailscale

1.  Get Certbot if not already installed:

apt update && apt install certbot python3-certbot-nginx -y

2.  Obtain the SSL certificate:

certbot --nginx -d 20.diligentservices.io

Your Nginx configuration will be automatically updated to use SSL.

3.  Verify HTTPS:

Open 20.diligentservices.io to confirm the site is secure.

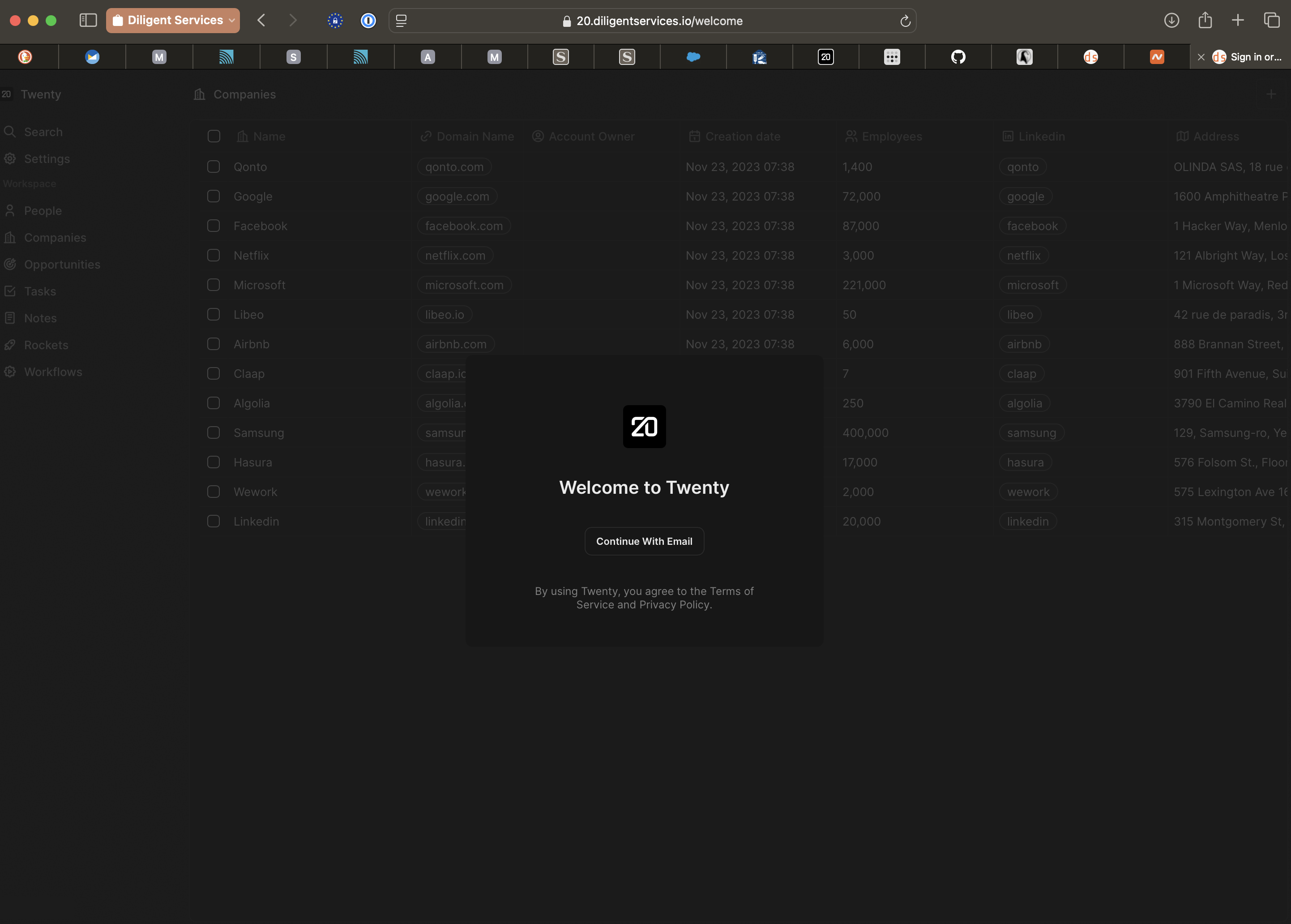

images/Twenty-Welcome.png

We’re managing this server securely using Tailscale. For more details on our setup, refer to the README.

Step 7: Ongoing Management and Observations

•   Restart the service:

docker compose down && docker compose up -d

•   View Nginx logs:

tail -f /var/log/nginx/20.diligentservices.io.error.log

•   Update Tailscale:

tailscale update

Open Signup Observations

As of now, there’s no obvious way to prevent public signups on my instance. Feel free to play with the CRM at https://20.diligentservices.io. Since I’m still testing it, I might purge the database, pay for the hosted service, or switch to another solution like Zoho or Salesforce—we’ll see how things go. Obviously, please don’t depend on this for your real data.

images/Twenty-Logo-Upload.png

Conclusion

Deploying Twenty CRM on our existing Hetzner ARM-based Ubuntu server is allowing us to evaluate the product without subscription fees. Despite some initial hiccups, the setup now works smoothly.

This guide should help anyone looking to self-host Twenty on similar infrastructure. For more on Quarto configuration and managing infrastructure, refer to our README.
